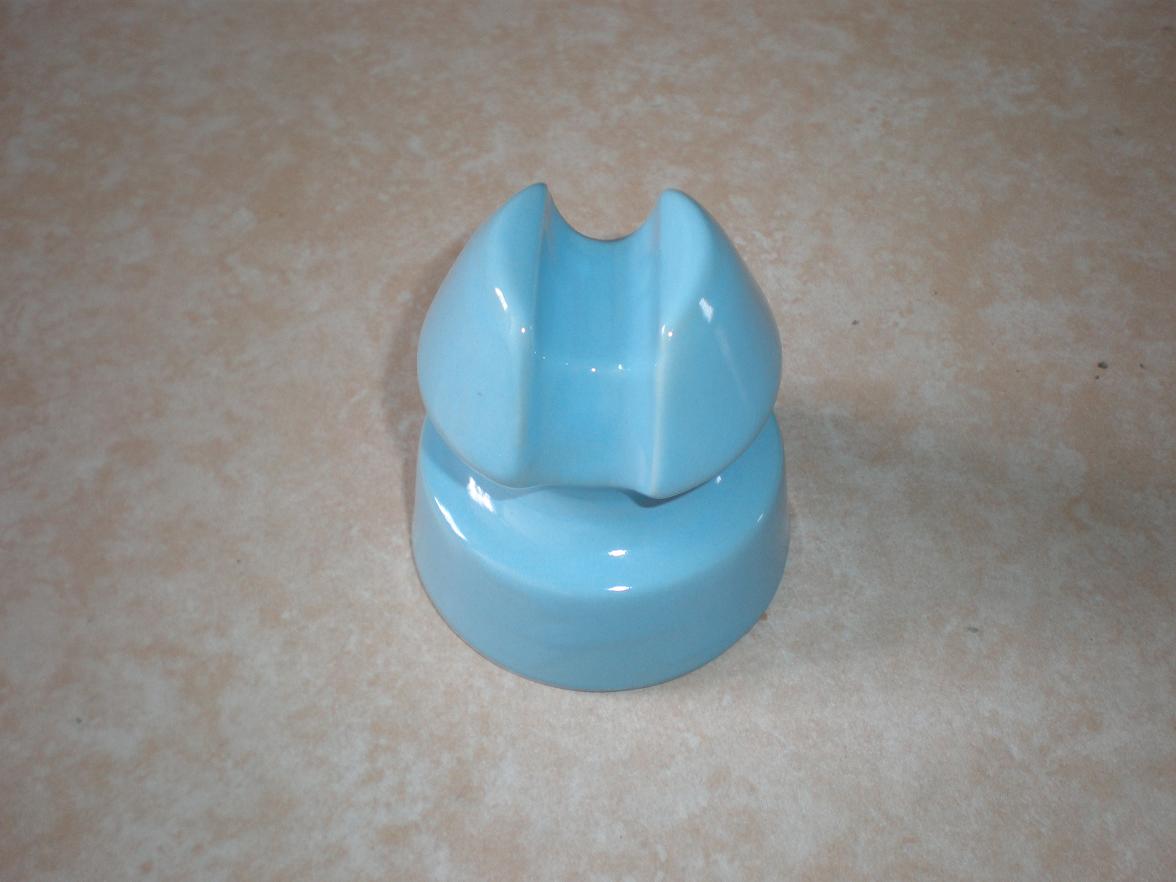

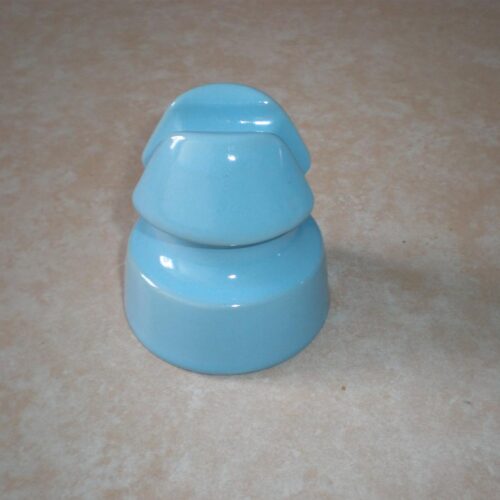

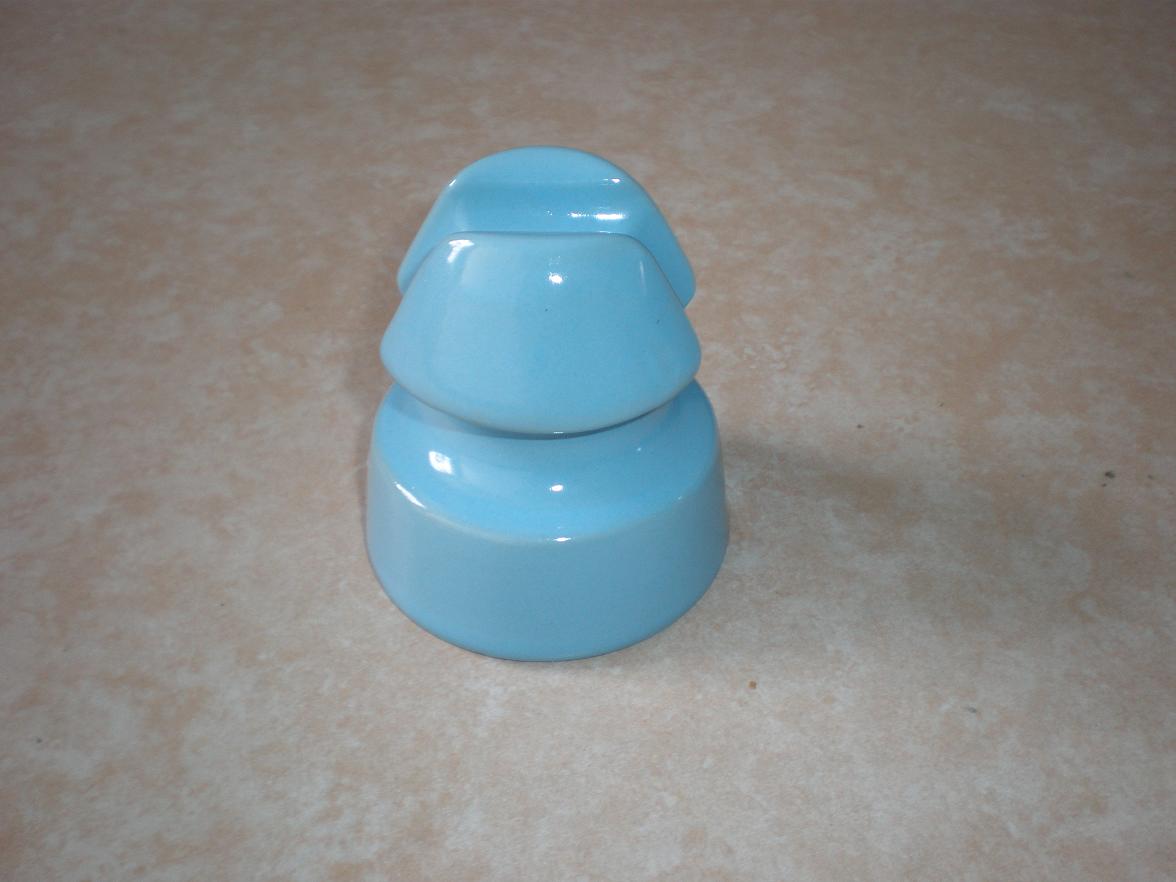

LP.LV Pin-Type Insulator AS 3608-2005 Compliant for 1000V Overhead Power Lines
The LP.LV Pin-Type Insulator Porcelain is a robust and dependable solution for insulation and conductor support in low voltage overhead distribution lines up to 1000V a.c. Manufactured to meet the rigorous requirements of AS 3608-2005 – the Australian Standard for porcelain and glass pin and shackle type insulators for voltages not exceeding 1000V a.c. – the LP.LV Pin-Type Insulator ensures seamless integration into power networks across Australia, New Zealand, and other markets that follow Australian Standards.
The LP.LV Pin-Type Insulator manufactured by Bonle (Fujian) Insulator Co., Ltd. features a durable grey glazed porcelain finish, providing excellent weather resistance and long-term durability in outdoor environments. With its robust mechanical design and reliable electrical performance, this insulator offers a cost-effective solution for low voltage overhead line applications.
LP.LV Pin-Type Insulator – Designation Breakdown
The designation LP.LV Pin-Type Insulator follows a logical product coding system:
| Code | Meaning |
| LP | Line Post / Line Pin (pin-type insulator) |
| LV | Low Voltage (nominal voltage not exceeding 1000V a.c.) |
LP.LV Pin-Type Insulator – Technical Specifications
| Parameter |
Value |
| Model |
LP.LV |
| Standard |
AS 3608-2005 |
| Nominal Voltage |
Not exceeding 1000V a.c. |
| Frequency |
Not greater than 100 Hz |
| Cantilever Strength (Minimum Failing Load) |
7 kN |
| Lightning Impulse Withstand Voltage |
40 kV |
| Insulator Material |
Porcelain |
| Color |
Grey |
| Surface Finish |
Glazed, except where marked (—) |
| Thread Type |
AS Pattern “B” thread |
| Dimensions |
Compliant with AS 3608, Figure 4.1 |
| Transition Radii |
Compliant with AS 3608, Figure 4.1 |
| Applicable Standard |
AS 3608-2005 |
LP.LV Pin-Type Insulator – Key Features
AS 3608-2005 Compliance – Manufactured to meet the Australian Standard for low voltage pin and shackle insulators, ensuring smooth acceptance by grid operators and regulatory bodies in Australia and New Zealand.
Reliable Mechanical Strength – With a minimum failing load of 7 kN, the insulator reliably withstands conductor tension, wind loads, and ice accretion, ensuring long‑term stability in overhead line installations.
Low Voltage Application – Designed for outdoor use at nominal voltages not exceeding 1000V a.c. and frequencies not greater than 100 Hz, making it ideal for low voltage distribution networks.
Standard Pattern B Thread – The insulator features an AS Pattern “B” V-thread, ensuring compatibility with standard low voltage insulator pins (e.g., B/100/3.5 or equivalent, per AS 3608).
Lightning Impulse Protection – With a lightning impulse withstand voltage of 40 kV, the insulator provides reliable protection against over voltages in low voltage networks.
Glazed Porcelain Finish – The insulator features a durable grey glaze coating that provides excellent weather resistance, UV protection, and self‑cleaning properties, ensuring long‑term performance in harsh outdoor environments. The areas marked “—” are left unglazed as specified.
Reliable Design – Engineered for long‑term reliable operation with minimal maintenance requirements – regular visual inspections and cleaning are typically sufficient to ensure continued performance.
LP.LV Pin-Type Insulator – Application Scenarios
The LP.LV Pin-Type Insulator is ideal for:
- Insulation and conductor support in low voltage overhead distribution lines up to 1000V a.c.
- Outdoor installations with exposure to all atmospheric factors
- AC overhead power lines with frequencies not exceeding 100 Hz
- Power distribution networks in normal environmental conditions
- Installation on wooden, reinforced concrete, and metal poles
- Low voltage distribution networks in Australia, New Zealand, and other AS‑standard markets
- Mounting options – can be used vertically or horizontally
LP.LV Pin-Type Insulator – Standards Compliance
| Standard | Description |
| AS 3608-2005 | Insulators – Porcelain and glass, pin and shackle type – Voltages not exceeding 1000V a.c. |
| AS 1154.1 | Insulator and conductor fittings for overhead power lines – Performance, material, general requirements and dimensions |
| AS 2947.3 | Insulators for overhead power lines – Porcelain and glass – Part 3: Insulator threads |
| AS/NZS 2947.1 | Test methods – Insulator units |
LP.LV Pin-Type Insulator – Recommended Pin
The LP.LV insulator is designed to be used with a standard pin having a Pattern B head (see AS 1154.1). The thread form of the insulator hole conforms to Pattern B (V-thread) as specified in Clause 2.1 of AS 3608-2005. For proper mounting, a pin type such as B/100/3.5 (or equivalent) is recommended, in accordance with the relevant pin standards.
LP.LV Pin-Type Insulator – Manufacturer
The LP.LV Pin-Type Insulator is manufactured by Bonle (Fujian) Insulator Co., Ltd., a leading Chinese insulator manufacturer with decades of experience in power line products. The manufacturer holds ISO 9001 certification and produces insulators in accordance with IEC, ANSI, ASTM, AS, BS, DIN, and ISO standards. All products undergo rigorous electrical and mechanical testing before shipment, ensuring the highest quality standards.
Model: LP.LV | Standard: AS 3608-2005 | Rated Voltage: ≤ 1000V a.c. | Minimum Failing Load: 7 kN
Why Choose LP.LV Pin-Type Insulator for Your Power Grid?
- Full AS compliance – meets AS 3608-2005 standard, ensuring smooth acceptance by grid operators and regulatory bodies in Australia and New Zealand
- Proven reliability – engineered with 7 kN minimum failing load and 40 kV lightning impulse withstand voltage
- Low voltage optimized – specifically designed for voltages not exceeding 1000V a.c.
- Weather‑resistant – grey glazed porcelain finish provides excellent weather resistance and UV protection
- Standardized thread – Pattern B thread ensures compatibility with standard LV insulator pins
- Cost‑effective – high performance at competitive pricing, reducing total project costs
- Versatile – suitable for a wide range of low voltage overhead distribution applications
