H1: ANSI 56-2 Insulator — 13.3kN Porcelain Pin-Type Insulator for Distribution Lines

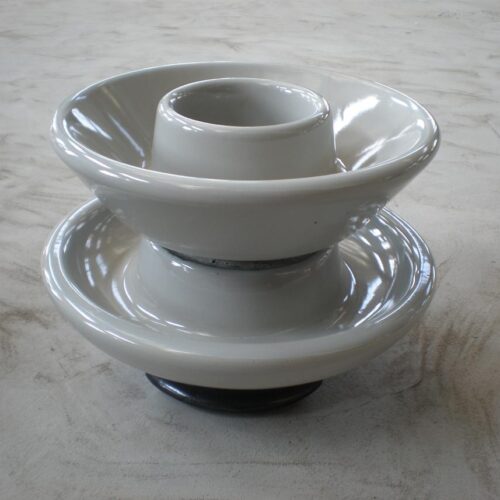

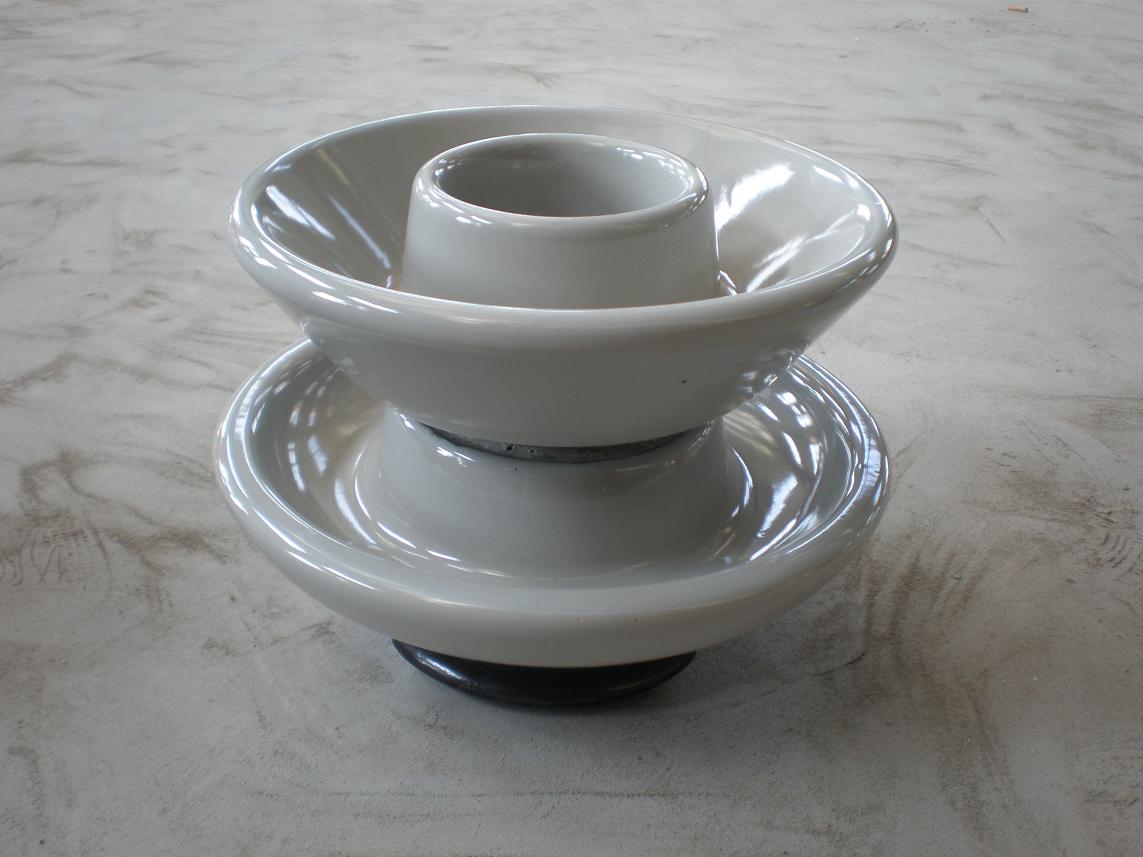

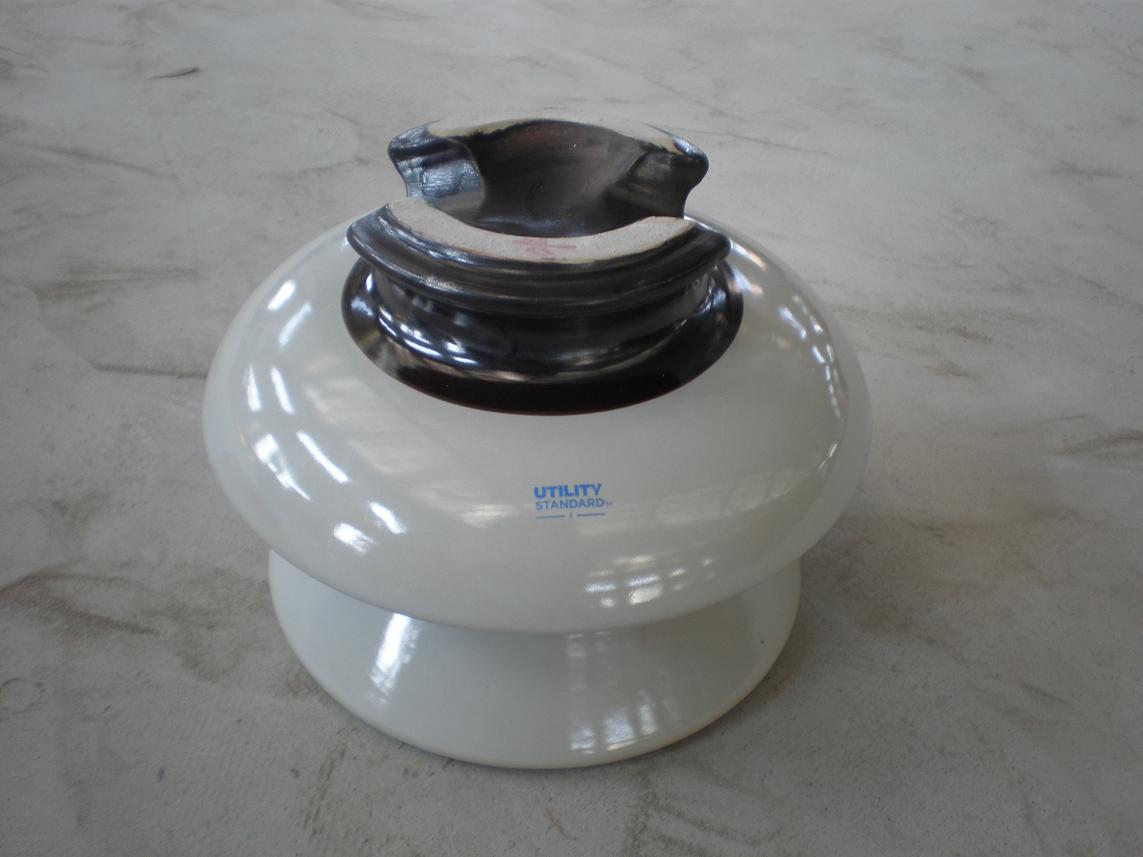

ANSI 56-2 Insulator is a heavy‑duty pin‑type porcelain insulator designed for medium‑voltage overhead distribution lines, offering higher mechanical strength and extended creepage distance for demanding applications. Manufactured in accordance with ANSI C29.6 standards, this ANSI 56-2 Insulator delivers reliable electrical insulation and mechanical endurance for distribution networks, particularly in areas with heavier conductor loads, longer spans, or moderate to heavy pollution. Its pin‑type construction ensures easy mounting on line poles and stable performance under extreme temperature cycling from ‑40°C to +105°C. Whether used in industrial zones, suburban feeder lines, coastal areas, or regions with salt fog exposure, the ANSI 56‑2 Insulator provides a cost‑effective and durable insulation solution for distribution infrastructure.
H2: ANSI 56-2 Insulator Technical Specifications
The ANSI 56‑2 Insulator has a cantilever strength of 13.3kN (3,000 lbf), making it suitable for medium‑voltage distribution applications with heavier conductor loads or longer spans. Its creepage distance is 381mm (15 inches), providing superior pollution flashover performance for more demanding environments. The dry arcing distance is 203mm (8 inches). The disc diameter is 213mm (8‑3/8 inches), and the height is 146mm (5‑3/4 inches). The minimum pin height is 152mm (6 inches). The insulator uses the standard pin type mounting with J‑Neck and 1‑3/8 inch pin hole diameter, fully interchangeable per ANSI dimensional requirements.
Standard glaze colors are grey or brown.
Complete Technical Data (both glaze colors):
| S/N | Technical Standard Particulars/Details | Brown | Gray |
| 1 | Product Item No./SKU Code | 56-2B | 56-2G |
| 2 | Glaze Color | Brown | Gray |
| 3 | ANSI Class | 56-2 | 56-2 |
| 4 | Figure No. | 1 | 1 |
| 5 | Connecting hardware coupling | Pin | Pin |
| 6 | Disc diameter D/in.(mm) | 8‑3/8 (213) | 8‑3/8 (213) |
| 7 | Unit Spacing H/in.(mm) | 5‑3/4 (146) | 5‑3/4 (146) |
| 8 | Leakage distance /in.(mm) | 15 (381) | 15 (381) |
| 9 | Cantilever strength /lb(kN) | 3000 (13.3) | 3000 (13.3) |
| 10 | Tension proof /lb(kN) | — | — |
| 11 | Impact strength /in‑lb(N‑m) | — | — |
| 12 | Low‑frequency dry flashover voltage (kV) | 110 | 110 |
| 13 | Low‑frequency wet flashover voltage (kV) | 65 | 65 |
| 14 | Critical impulse flashover voltage, Positive (kV) | 170 | 170 |
| 15 | Critical impulse flashover voltage, Negative (kV) | 200 | 200 |
| 16 | Low‑frequency puncture voltage (kV) | 145 | 145 |
| 17 | Radio‑influence voltage data‑RIV (Test voltage to ground)（kV） | 22 | 22 |
| 18 | Radio‑influence voltage data‑RIV (Max. RIV at 1000kHz)（μV） | 100 | 100 |
| 19 | Net weight (kg) | 4.5 – 4.6 | 4.5 – 4.6 |
| 20 | Applicated Standard | ANSI C29.6 | ANSI C29.6 |
H2: Material & Construction
Every unit of the ANSI 56‑2 Insulator is made from high‑grade porcelain, fired at high temperature to achieve maximum density and near‑zero porosity. The pin is manufactured from hot‑dip galvanized steel, providing excellent corrosion resistance. The cement bonding between porcelain and metal parts uses high‑quality cement, ensuring stable mechanical performance under extreme thermal cycling from ‑40°C to +105°C. The hard, glossy glaze coating offers good self‑cleaning properties, reducing maintenance frequency. For more on porcelain manufacturing standards, visit the International Electrotechnical Commission (IEC).
H2: ANSI 56-2 Insulator Applications & Installation
The ANSI 56‑2 Insulator is widely used on medium‑voltage overhead distribution lines, typically at 25kV system voltage, and can also be applied on 34.5kV lines in some designs. It is ideal for:
- Heavy‑duty distribution feeders
- Suburban and industrial power supply lines
- Coastal areas with salt fog exposure
- Regions with moderate to heavy pollution
The pin‑type design allows easy mounting on line poles using standard pin hardware. Standard coupling dimensions ensure full compatibility with existing pin bases and cross‑arms. Explore our full range of suspension insulators and transmission hardware for more options.
H2: ANSI 56-2 Insulator Quality & Performance Advantages
Compared to polymer alternatives, porcelain offers unmatched resistance to UV radiation, bird pecking, and scratch damage. Its glaze reduces continuous water film formation, significantly raising pollution flashover voltage. Moreover, the ANSI 56‑2 Insulator requires minimal routine maintenance and delivers a service life of over 30 years under normal operating conditions. Full testing procedures are detailed in ANSI C29.6, published by NEMA.
Every unit undergoes 100% routine electrical and mechanical testing before dispatch, including visual inspection, dimensional checks, mechanical load tests, and high‑voltage withstand tests. Prototype tests — such as temperature cycling and radio interference voltage (RIV) — are also performed per ANSI C29.6 standards. Full test reports and traceability records are provided for each batch. For installation guidance, refer to our insulator string assembly guide.
Each insulator is individually packed with foam cushioning and secured in sturdy wooden crates or corrugated cartons to prevent transit damage. We offer flexible shipping options (FOB, CIF, EXW) with lead times of 15‑30 days depending on order quantity.
For detailed datasheets, CAD drawings, or competitive pricing on the ANSI 56‑2 Insulator, please contact our sales team via the inquiry form below. We also offer OEM services and free technical consultation for distribution line design.
