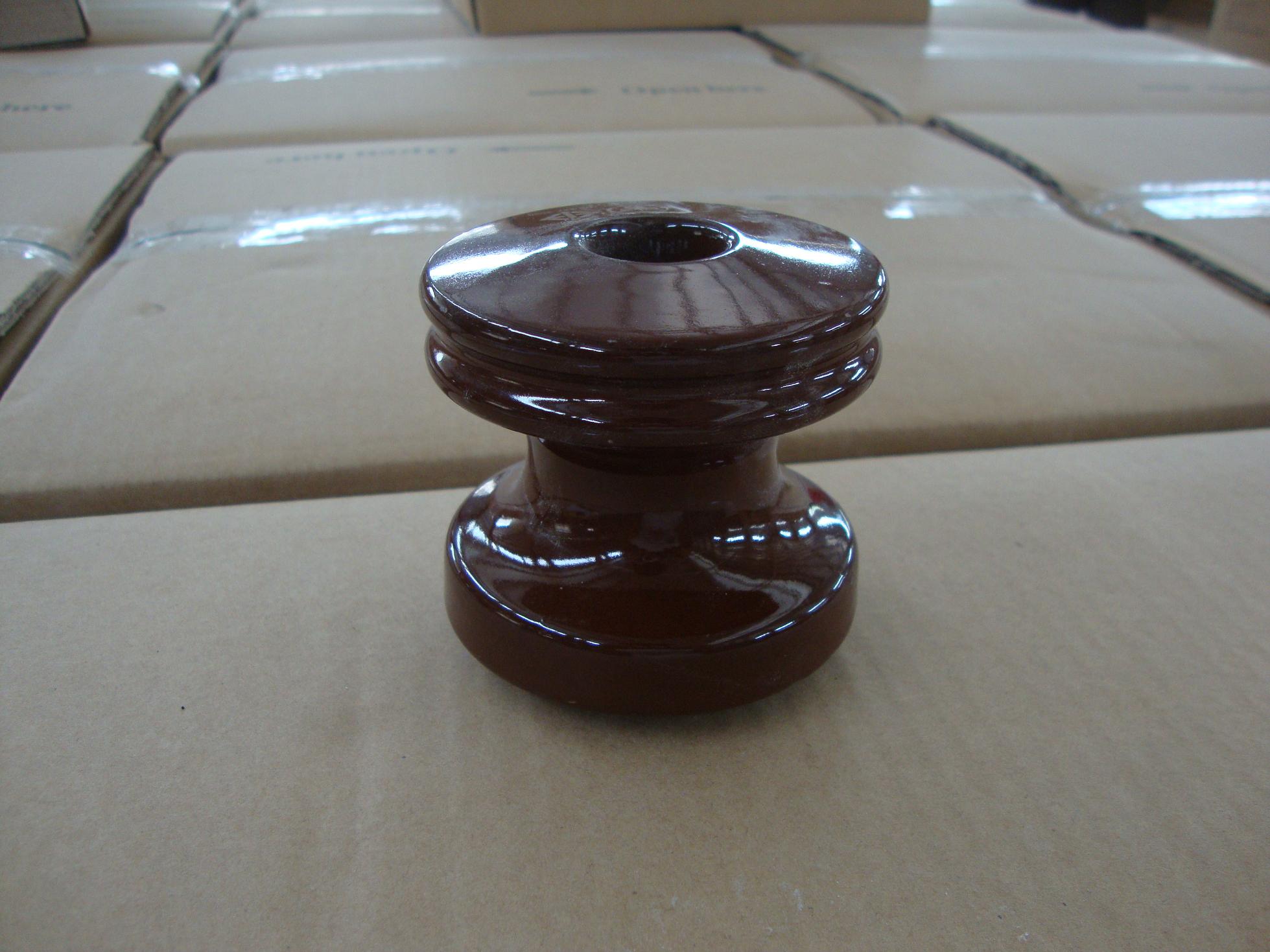

H1: ANSI 53-2 Insulator — 13kN Porcelain Spool Insulator for Distribution Lines
ANSI 53-2 Insulator is a robust, spool‑type porcelain insulator designed for low‑voltage overhead distribution lines, secondary applications, and service drops. Manufactured in accordance with ANSI C29.3 standards, this ANSI 53-2 Insulator delivers reliable electrical insulation and enhanced mechanical endurance for distribution networks. Its spool‑type construction ensures easy mounting on line poles and stable performance under extreme temperature cycling from ‑40°C to +105°C. Whether used in secondary racks, neutral applications, or service drop installations, the ANSI 53‑2 Insulator provides a cost‑effective and durable insulation solution for distribution infrastructure.
H2: ANSI 53-2 Insulator Technical Specifications
The ANSI 53‑2 Insulator has a combined mechanical and electrical (M&E) strength of 13kN (3,000 lbf), making it suitable for low‑voltage distribution applications with heavier conductor loads. Its low‑frequency dry flashover voltage is 25kV. The wet flashover voltage is 12kV vertical and 15kV horizontal. The spool spacing is 76mm (3 inches), and the diameter is 79mm (3‑1/9 inches). The insulator is manufactured from wet‑process porcelain.
Standard glaze colors are grey or brown； other colors may be available upon request.
Complete Technical Data (both glaze colors):
| S/N | Technical Standard Particulars/Details | Brown | Gray |
| 1 | Product Item No./SKU Code | 53-2B | 53-2G |
| 2 | Glaze Color | Brown | Gray |
| 3 | ANSI Class | 53-2 | 53-2 |
| 4 | Figure No. | 1 | 1 |
| 5 | Connecting hardware coupling | Spool | Spool |
| 6 | Spacing S/in.(mm) | 3 (76) | 3 (76) |
| 7 | Diameter D/in.(mm) | 3-1/9 (79) | 3-1/9 (79) |
| 8 | Transverse Strength /lb(kN) | 3000 (13) | 3000 (13) |
| 9 | Low‑frequency dry flashover voltage (kV) | 25 | 25 |
| 10 | Low‑frequency wet flashover voltage, vertical (kV) | 12 | 12 |
| 11 | Low‑frequency wet flashover voltage, horizontal (kV) | 15 | 15 |
| 12 | Net weight (kg) | 0.50 – 0.55 | 0.50 – 0.55 |
| 13 | Applicated Standard | ANSI C29.3 | ANSI C29.3 |
H2: Material & Construction
Every unit of the ANSI 53‑2 Insulator is made from high‑grade wet‑process porcelain, fired at high temperature to achieve maximum density and near‑zero porosity. The spool‑type design ensures easy handling and reliable performance under extreme thermal cycling from ‑40°C to +105°C. The hard, glossy glaze coating offers good self‑cleaning properties, reducing maintenance frequency. For more on porcelain manufacturing standards, visit the International Electrotechnical Commission (IEC).
H2: ANSI 53-2 Insulator Applications & Installation
The ANSI 53‑2 Insulator is widely used on low‑voltage overhead distribution lines, secondary applications, service drops, and neutral connections. It is ideal for:
- Secondary distribution networks
- Service drop installations
- Neutral and secondary rack applications
- Low‑voltage pole line hardware
The spool‑type design allows easy mounting using spool bolts (upset bolts), insulator clevises, and secondary racks. Explore our full range of suspension insulators and transmission hardware for more options.
H2: ANSI 53-2 Insulator Quality & Performance Advantages
Compared to polymer alternatives, porcelain offers unmatched resistance to UV radiation, bird pecking, and scratch damage. Its glaze reduces continuous water film formation, significantly raising pollution flashover voltage. Moreover, the ANSI 53‑2 Insulator requires minimal routine maintenance and delivers a service life of over 30 years under normal operating conditions. Full testing procedures are detailed in ANSI C29.3, published by NEMA.
Every unit undergoes 100% routine electrical and mechanical testing before dispatch, including visual inspection, dimensional checks, mechanical load tests, and high‑voltage withstand tests. Prototype tests — such as temperature cycling — are also performed per ANSI C29.3 standards. Full test reports and traceability records are provided for each batch. For installation guidance, refer to our insulator string assembly guide.
Each insulator is individually packed with foam cushioning and secured in sturdy cartons to prevent transit damage. We offer flexible shipping options (FOB, CIF, EXW) with lead times of 15‑30 days depending on order quantity.
For detailed datasheets, CAD drawings, or competitive pricing on the ANSI 53‑2 Insulator, please contact our sales team via the inquiry form below. We also offer OEM services and free technical consultation for distribution line design.
