ED-2B1 Shackle Insulator — 11kN Porcelain Insulators Product Overview

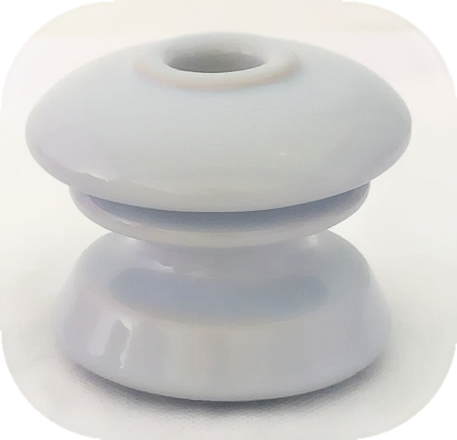

The ED-2B1 shackle insulator is a porcelain insulator designed for low-voltage overhead distribution lines. It is commonly used as a British Standard type shackle insulator for securing and insulating conductors at terminal poles, corner poles, and tension points.
The ED-2B1 features a compact ceramic body with a height of 76 mm / 3″ and a diameter of 89 mm / 3.5″. With a tensile strength of 11 kN, it provides reliable mechanical support for low-voltage overhead line applications.
Its electrical performance includes a 25 kV dry flashover voltage and a 12 kV wet flashover voltage, making it suitable for dependable outdoor insulation.
The ED-2B1 is similar to the ED-2B model but has a modified inner dimension (d1/d2: 48/17.5 instead of 48/21), which may affect mounting compatibility with certain spindles or brackets. Please verify the required dimensions for your specific installation.
ED-2B1 Shackle Insulator Technical Specifications
| Parameter | Value |
| Model | ED-2B1 |
| Product Type | Shackle Insulator |
| Material | Porcelain |
| Height (H) | 76 mm / 3″ |
| Diameter (D) | 89 mm / 3.5″ |
| d1 / d2 | 48 / 17.5 |
| R | 10 |
| Tensile Strength | 11 kN |
| Flashover Voltage, Dry | 25 kV |
| Flashover Voltage, Wet | 12 kV |
| Net Weight | 0.5 kg |
Main Dimensions
| Dimension | mm | inch |
| H | 76 | 3″ |
| D | 89 | 3.5″ |
| d1 / d2 | 48 / 17.5 | — |
| R | 10 | — |
The dimension codes H, D, d1, d2, and R refer to the standard drawing references for the ED-2B1 shackle insulator. For detailed installation drawings or tolerance information, please contact our technical team.
Mechanical Performance
The ED-2B1 shackle insulator has a tensile strength of 11 kN, allowing it to withstand the mechanical loads typically encountered in low-voltage overhead distribution networks. It is suitable for supporting conductors at terminal poles, angle poles, and other line termination points where reliable mechanical retention is required.
Electrical Characteristics
| Parameter | Value |
| Flashover Voltage, Dry | 25 kV |
| Flashover Voltage, Wet | 12 kV |
These electrical ratings confirm the ED-2B1 as a dependable low-voltage shackle insulator for outdoor overhead line installations. The wet flashover rating of 12 kV supports reliable performance under rain and humidity conditions.
ED-2B1 Shackle Insulator Standards and Compliance
The ED-2B1 shackle insulator is typically manufactured to comply with British Standard requirements for shackle insulators. Relevant standards organizations include:
- British Standards Institution (BSI)
- International Electrotechnical Commission (IEC)
- American National Standards Institute (ANSI)
For specific standard compliance certificates, test reports, or equivalent IEC/ANSI references, please contact our sales team.
Applications
The ED-2B1 shackle insulator is primarily used in low-voltage overhead distribution lines, including:
- Terminal poles
- Corner poles
- Tension poles
- Secondary racks
- Overhead service connections
It is mounted on a spindle, bolt, or bracket, and the conductor is secured using soft-bending tie wire. The porcelain body offers excellent weathering resistance for long-term outdoor service.
Installation Notes
- Mount the insulator securely on the pole bracket, spindle, or bolt.
- Secure the conductor using suitable tie wire.
- Ensure correct alignment to maintain mechanical and electrical performance.
- Inspect for cracks or glaze damage before installation.
- Follow local utility installation guidelines.
Packing and Shipping
| Parameter | Value |
| Net Weight | 0.5 kg |
| Material | Porcelain |
The ED-2B1 is lightweight and compact, making it cost-effective to transport, store, and install. Standard export packaging is available. Custom packaging and labeling can be provided upon request.
Related Products
Explore related insulator products:
- ED-2B1 Shackle Insulator
- ED-2B Shackle Insulator
- ED-2C Shackle Insulator
- 1617 Spool Insulator
- ANSI 53-1 Spool Insulator
- ANSI 54-3 Porcelain Stay Insulator
- BS ED-2 Series Shackle Insulator
- Shackle Insulators Category
- Spool Insulators Category
Frequently Asked Questions
Q: What is the ED-2B1 shackle insulator?
A: The ED-2B1 is a porcelain shackle insulator used in low-voltage overhead distribution lines for conductor support and insulation.
Q: What is the tensile strength of the ED-2B1?
A: The ED-2B1 has a tensile strength of 11 kN.
Q: What are the flashover ratings of the ED-2B1?
A: The ED-2B1 has a 25 kV dry flashover voltage and a 12 kV wet flashover voltage.
Q: What are the dimensions of the ED-2B1?
A: Height H is 76 mm / 3″, diameter D is 89 mm / 3.5″, d1/d2 is 48/17.5, and R is 10.
Q: What is the net weight of the ED-2B1?
A: The approximate net weight is 0.5 kg.
Q: What is the difference between ED-2B and ED-2B1?
A: The main difference is the inner dimension d1/d2: ED-2B has 48/21, while ED-2B1 has 48/17.5. Other specifications such as height, diameter, tensile strength, and flashover voltages are the same.
Contact and Customization
For inquiries regarding the ED-2B1 shackle insulator — including pricing, samples, bulk orders, technical drawings, or OEM customization — please contact our sales team. We offer factory-direct pricing, timely delivery, and customer-specific design services for utility and distribution projects.
