H1: ANSI 54 Series Insulator Comparison — Porcelain Stay Insulators for Distribution Lines
The ANSI 54 Series comprises porcelain stay (guy) insulators manufactured in accordance with ANSI C29.4 standards, designed for insulating guy wires and stay cables in overhead power distribution lines. Manufactured from high-quality electrical porcelain with a durable glaze finish, these insulators provide reliable insulation and mechanical strength for guy wire applications. The series covers tensile strength grades from 44kN to 89kN, making them suitable for a variety of distribution line stay requirements. This comparison covers models 54‑1 through 54‑4 and provides a side‑by‑side technical overview for proper selection.
H2: ANSI 54 Series Insulator — Full Technical Specifications
| Cat. No. | ANSI Class | Fig. | Creepage /mm | Tensile /kN | Dry (kV) | Wet (kV) | H /mm | h /mm | H₂ /mm | d /mm | Weight (kg) |
| 71001 | 54-1 | 1 | 41 | 44 | 25 | 12 | 89 | 44 | 64 | 16 | 0.50 |
| 71002 | 54-2 | 2 | 48 | 53 | 30 | 15 | 108 | 57 | 73 | 22 | 0.65 |

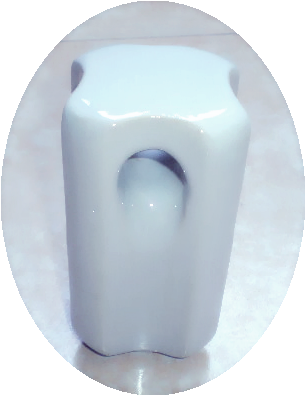

| 71003 | 54-3 | 2 | 57 | 89 | 35 | 18 | 140 | 67 | 86 | 25 | 1.20 |

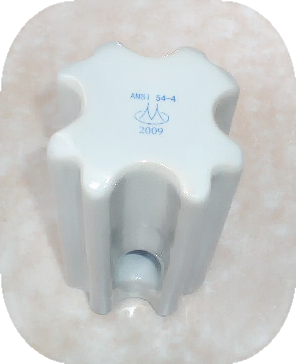

| 71004 | 54-4 | 2 | 76 | 89 | 40 | 23 | 172 | 79 | 89 | 25 | 1.85 |
All models: Standard ANSI C29.4 | Material: Wet-process porcelain | Glaze: Brown / Gray
H2: ANSI 54 Series Insulator Material & Construction (Common to All Models)
Every unit of the ANSI 54 Series is manufactured from high-quality wet-process porcelain with a durable glaze coating, providing excellent resistance to weathering and UV radiation. The insulators are designed with metal end fittings for easy installation on guy wires and stay cables. Both brown and gray glaze colors are available. For more on porcelain manufacturing standards, visit the International Electrotechnical Commission (IEC).
H2: ANSI 54 Series Insulator Applications & Installation
ANSI 54 Series stay insulators are widely used in overhead power distribution lines for guy wire insulation. Typical applications include:
- Guy wire insulation on distribution poles
- Stay cable insulation at dead-end structures
- Guying of transmission towers
- Pole line hardware installations
The insulators are installed in-line with guy wires, providing electrical insulation while maintaining mechanical strength. Explore our full range of suspension insulators and transmission hardware for more options.
H2: ANSI 54 Series Insulator Quality & Performance Advantages
Porcelain stay insulators offer excellent resistance to UV radiation, weathering, and mechanical stress, with long service life under normal operating conditions. Full testing procedures are detailed in ANSI C29.4, published by NEMA.
Each unit undergoes routine electrical and mechanical testing, including visual inspection, dimensional checks, and tensile load tests. Design tests — such as dry flashover, wet flashover, and mechanical failing load — are performed per ANSI C29.4 standards on new designs. Full test reports and traceability records are provided for each batch. For installation guidance, refer to our insulator string assembly guide.
H2: ANSI 54 Series Insulator Selection Recommendations
| Application Requirement | Recommended Model | Key Selection Criteria |
| Lightest load / low voltage | 54-1 | 44kN, 0.50kg, most economical |
| Standard distribution guying | 54-2 | 53kN, balanced dimensions |
| Medium to heavy guying | 54-3 | 89kN, higher dry/wet flashover |
| Heavy guying / high pollution | 54-4 | 89kN, longest creepage (76mm), best wet flashover (23kV) |
| Longest creepage requirement | 54-4 | 76mm creepage, best pollution performance |
