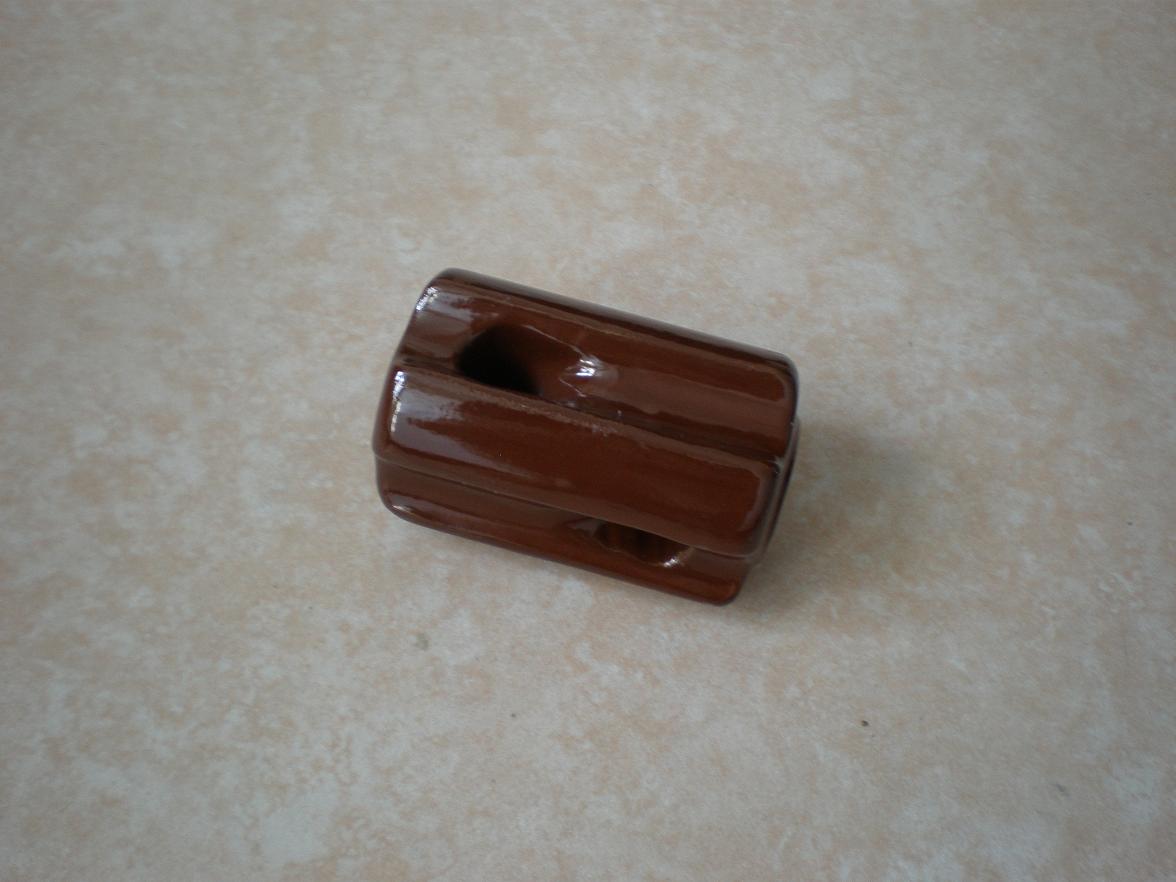

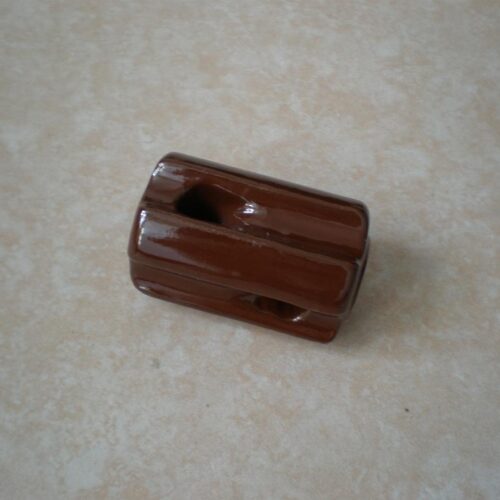

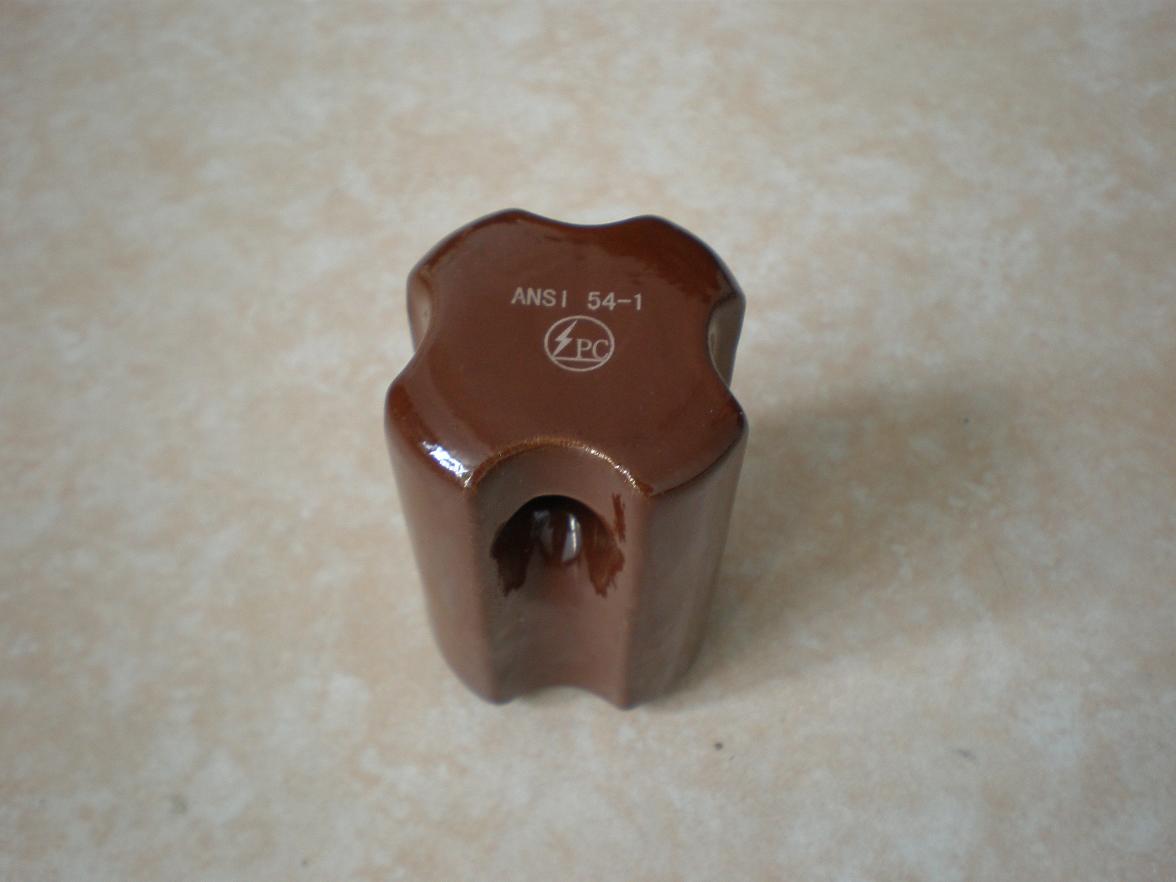

H1: ANSI 54-1 Insulator — 44kN Porcelain Strain Insulator for Distribution Lines
ANSI 54-1 Insulator is a compact, strain-type porcelain insulator designed for dead-end, corner, angle, and tension applications in overhead power distribution networks. Manufactured in accordance with ANSI C29.3 standards, this ANSI 54-1 Insulator delivers reliable electrical insulation and mechanical endurance for distribution networks. Its strain-type construction ensures easy installation with guy wires and stable performance under extreme temperature cycling from -40°C to +105°C. Whether used in dead-end structures, angle poles, or guy wire isolation applications, the ANSI 54-1 Insulator provides a cost-effective and durable insulation solution for distribution infrastructure.
H2: Technical Specifications
The ANSI 54-1 Insulator has a mechanical failing load of 44kN (10,000 lbf), making it suitable for low-voltage distribution applications with high tensile loads. Its low-frequency dry flashover voltage is 25kV. The wet flashover voltage is 12kV. The height is 89mm (3-1/2 inches), and the diameter is 64mm (2-1/2 inches). The creepage distance is 41mm. Maximum cable diameter is 3/8 inch. The insulator is manufactured from wet-process porcelain.
Standard glaze colors are grey or brown.
Complete Technical Data (both glaze colors):
| S/N | Technical Standard Particulars/Details | Brown | Gray |
| 1 | Product Item No./SKU Code | 54-1B | 54-1G |
| 2 | Glaze Color | Brown | Gray |
| 3 | ANSI Class | 54-1 | 54-1 |
| 4 | Figure No. | 1 | 1 |
| 5 | Connecting hardware coupling | Strain | Strain |
| 6 | Height H/mm (in.) | 89 (3-1/2) | 89 (3-1/2) |
| 7 | Diameter D/mm (in.) | 64 (2-1/2) | 64 (2-1/2) |
| 8 | Mechanical Failing Load /lb(kN) | 10000 (44) | 10000 (44) |
| 9 | Low-frequency dry flashover voltage (kV) | 25 | 25 |
| 10 | Low-frequency wet flashover voltage (kV) | 12 | 12 |
| 11 | Creepage distance (mm) | 41 | 41 |
| 12 | Maximum cable diameter (in.) | ||
| 13 | Net weight (kg) | 0.5 | 0.5 |
| 14 | Applicated Standard | ANSI C29.4 | ANSI C29.4 |
H2: Material & Construction
Every unit of the ANSI 54-1 Insulator is made from high-grade wet-process porcelain, fired at high temperature to achieve maximum density and near-zero porosity. The strain-type design ensures easy handling and reliable performance under extreme thermal cycling from -40°C to +105°C. The hard, glossy glaze coating offers good self-cleaning properties, reducing maintenance frequency. For more on porcelain manufacturing standards, visit the International Electrotechnical Commission (IEC).
H2: Applications & Installation
The ANSI 54-1 Insulator is widely used on low-voltage overhead distribution lines, dead-end structures, corner poles, angle poles, and guy wire isolation applications. It is ideal for:
- Dead-end and angle structures
- Corner pole applications
- Guy wire isolation
- Tension applications in distribution networks
The strain-type design allows easy mounting using guy wire grips, bolts, and other compatible hardware. Explore our full range of suspension insulators and transmission hardware for more options.
H2: Quality & Performance Advantages
Compared to polymer alternatives, porcelain offers unmatched resistance to UV radiation, bird pecking, and scratch damage. Its glaze reduces continuous water film formation, significantly raising pollution flashover voltage. Moreover, the ANSI 54-1 Insulator requires minimal routine maintenance and delivers a service life of over 30 years under normal operating conditions. Full testing procedures are detailed in ANSI C29.3, published by NEMA.
Every unit undergoes 100% routine electrical and mechanical testing before dispatch, including visual inspection, dimensional checks, mechanical load tests, and high-voltage withstand tests. Prototype tests — such as temperature cycling — are also performed per ANSI C29.3 standards. Full test reports and traceability records are provided for each batch. For installation guidance, refer to our insulator string assembly guide.
Each insulator is individually packed with foam cushioning and secured in sturdy cartons to prevent transit damage. We offer flexible shipping options (FOB, CIF, EXW) with lead times of 15-30 days depending on order quantity.
For detailed datasheets, CAD drawings, or competitive pricing on the ANSI 54-1 Insulator, please contact our sales team via the inquiry form below. We also offer OEM services and free technical consultation for distribution line design.
