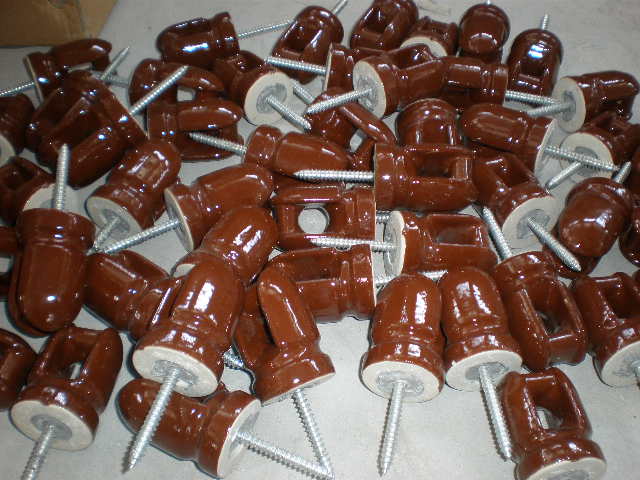

H1: Wiring Insulators — Customizable Design, Brown/Gray Glaze, Reliable Electrical Wiring Insulation, IEC 60383
The Wiring Insulators are versatile, high‑reliability insulation solutions engineered for a wide range of electrical wiring, busbar support, and miscellaneous insulation applications.
Designed to provide secure conductor support and reliable electrical isolation, these insulators are essential components in switchgear, panel boards, and various wiring systems.
Manufactured to meet international standards, these insulators feature a durable porcelain body with a choice of brown (standard) or gray (optional) glaze.
The robust construction ensures dependable performance under diverse electrical and environmental conditions.
Whether you are designing switchgear assemblies, panel boards, busbar systems, or custom wiring installations, the Wiring Insulators offer durable, cost‑effective choices for your electrical infrastructure.
The product’s dimensions, characteristics, and glaze color can be customised to meet specific project requirements.
The hard, glossy glaze provides excellent self‑cleaning and insulating properties, reducing maintenance requirements and extending service life in demanding electrical applications.
H2: Wiring Insulator — Technical Specifications (Typical Range)
The Wiring Insulators are available in a range of configurations to meet diverse application requirements. The following table provides typical technical parameters. Custom dimensions and specifications are available upon request.
| Parameter | Typical Range / Value |
| Type | Wiring Insulator / Other Insulators |
| Glaze Color | Brown (Standard) / Gray (Optional) |
| Material | High-grade Alumina Porcelain |
| Application | Electrical Wiring / Busbar Support / Switchgear / Panel Boards |
| Mounting Type | Through-hole / Base-mounted / Custom |
| Manufacturing Standard | IEC 60383 (or customer-specified) |
| Customization | Dimensions, characteristics, glaze color available upon request |
Note: The Wiring Insulators can be designed and manufactured according to customer specifications. Please contact our sales team for custom configurations.
H2: Wiring Insulator — Available Glaze Colors
The Wiring Insulators are offered in two high‑quality glaze finishes. All technical parameters remain identical regardless of glaze color choice.
| Parameter | Brown Glaze | Gray Glaze |
| Glaze Color | Brown | Gray |
| Aesthetic Appearance | Traditional standard color | Modern light gray finish |
| Performance | Identical | Identical |
| Durability | Identical | Identical |
| Insulating Properties | Identical | Identical |
| Availability | Standard | Optional |
H2: Wiring Insulator — Material and Construction
Each wiring insulator is produced from high‑grade alumina porcelain, fired at over 1,300 °C using the wet process, achieving maximum density and near‑zero porosity.
The robust porcelain body provides excellent dielectric strength and mechanical durability, ensuring reliable performance in electrical wiring, busbar support, and switchgear applications. The insulator design accommodates various mounting configurations, including through‑hole, base‑mounted, and custom designs.
The hard, glossy glaze — available in brown or gray — provides superior insulating properties and resists surface contamination. This ensures consistent electrical performance throughout the insulator’s service life.
Whether used in indoor switchgear, outdoor installations, or custom electrical assemblies, the Wiring Insulators deliver dependable performance with minimal maintenance.
H2: Wiring Insulator — Applications and Installation
The Wiring Insulators are widely deployed across various electrical applications, providing reliable insulation for conductor support and electrical isolation.
Typical application scenarios include:
- Switchgear assemblies – Insulating and supporting busbars and conductors within switchgear enclosures.
- Panel boards – Providing insulation for wiring connections and conductor support in distribution panels.
- Busbar support systems – Supporting and insulating busbars in power distribution systems.
- Electrical wiring installations – Insulating conductor connections in various wiring applications.
- Miscellaneous insulation requirements – Custom applications requiring reliable porcelain insulation.
The versatile insulator designs accommodate various mounting methods, facilitating quick and secure installation in diverse electrical assemblies. The robust construction provides dependable insulation under the electrical and environmental stresses typical of electrical wiring applications.
For custom applications, dimensions, characteristics, and glaze color can be designed and manufactured to meet specific customer requirements. Explore our full range of insulators for more options.
H2: Wiring Insulator — Quality and Performance Advantages
The Wiring Insulators offer several performance advantages for electrical wiring and insulation applications:
- Versatile design – Suitable for switchgear, panel boards, busbar systems, and miscellaneous wiring applications.
- Customizable options – Dimensions, characteristics, and glaze color can be tailored to meet specific project requirements.
- Proven porcelain construction – High‑grade alumina porcelain ensures exceptional dielectric strength and mechanical durability.
- Multiple mounting configurations – Available in various mounting styles to suit different applications.
- IEC 60383 compliance – Manufactured to international standards (or customer‑specified standards).
- Long service life – Expected service life exceeding 50 years under normal operating conditions.
With an expected service life exceeding 50 years under normal operating conditions, the Wiring Insulators require minimal routine maintenance. Every unit undergoes 100% routine testing before dispatch, including:
- Visual and dimensional inspections.
- Mechanical load testing.
- Porosity and temperature‑cycle prototype testing.

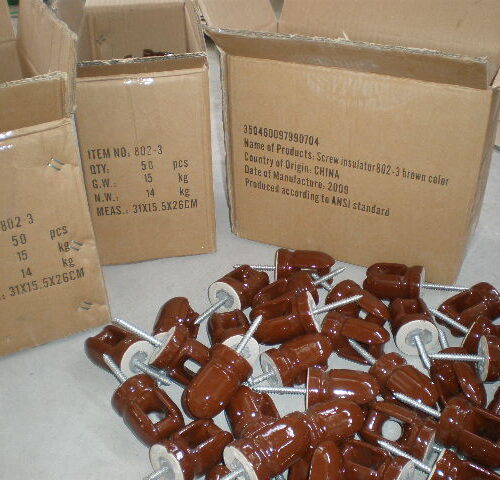

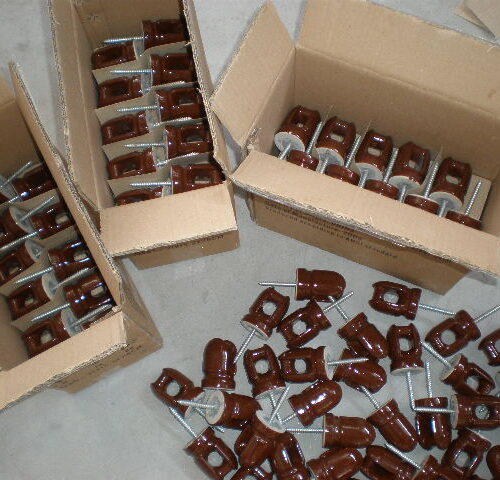

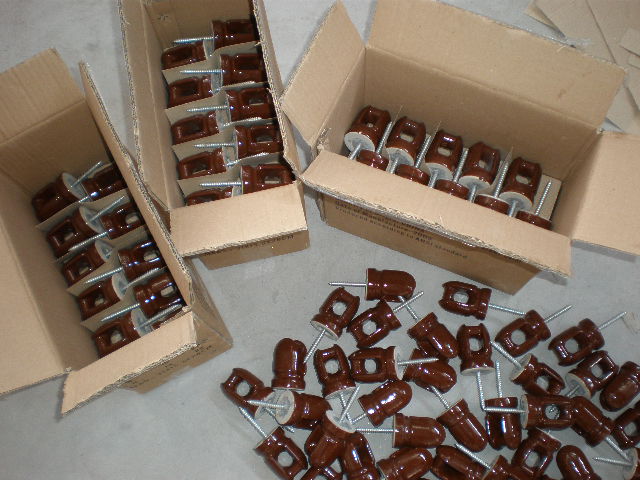

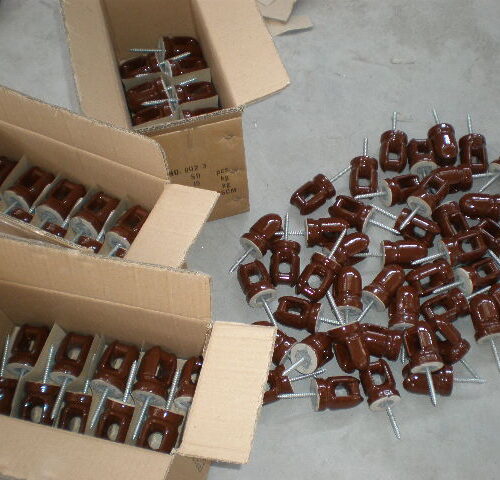

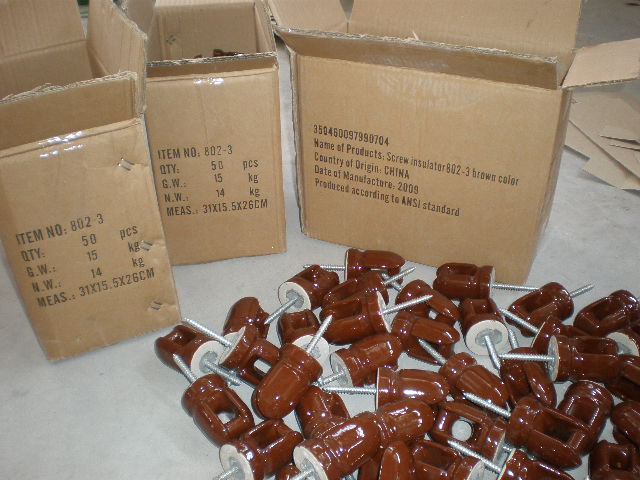

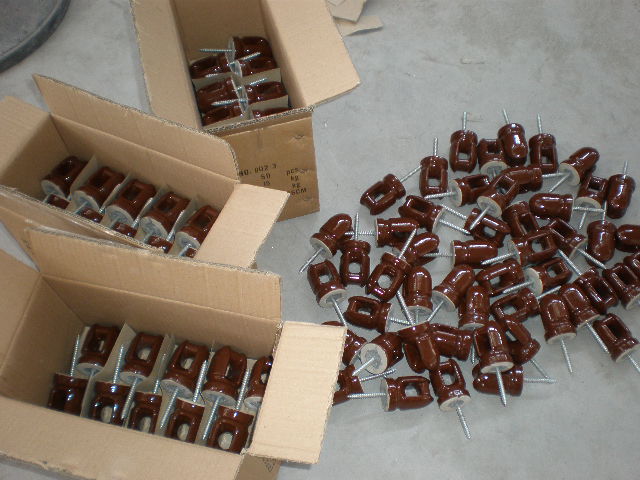

Each insulator is individually foam‑cushioned and securely packed in durable wooden crates or corrugated cartons. This prevents damage during transit. We offer flexible shipping arrangements (FOB, CIF, EXW) with lead times of 15–30 days, depending on order quantity.
For detailed product datasheets, CAD drawings, or competitive pricing on the Wiring Insulators (brown or gray), please contact our sales team via the inquiry form below.
We also provide OEM services and complimentary technical consultation for custom designs. For installation guidance, refer to our insulator string assembly guide.
H2: Wiring Insulator — Why Choose Our Product?
Selecting the right insulation solution for your electrical wiring and switchgear applications is critical to long‑term system reliability. Our Wiring Insulators are manufactured under stringent quality control protocols at every production stage.
From raw material sourcing (high‑grade alumina porcelain) to final high‑voltage electrical testing, every step aligns with international standards.
We understand that every project has unique requirements — that is why we offer customizable dimensions, characteristics, and glaze colors to meet specific customer needs.
With over a decade of experience in porcelain insulator production, we offer competitive factory pricing, prompt delivery, and dedicated after‑sales technical support.
Whether you require a small sample batch for project validation or a full container shipment, the Wiring Insulators (brown or gray) are available with short lead times.
Contact us today to discover how our Wiring Insulators can strengthen your electrical system reliability.
