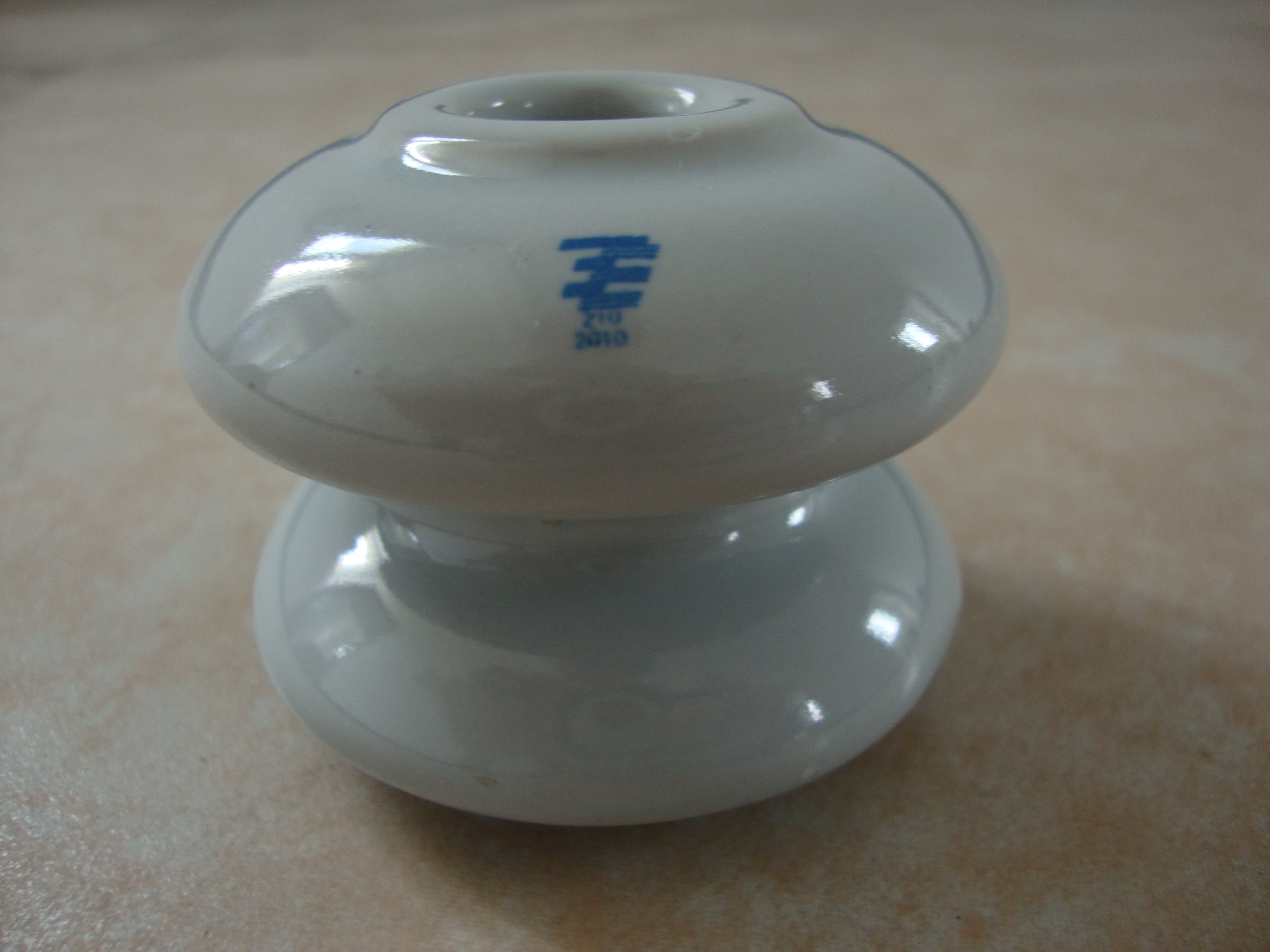

TYPE 210 Shackle Type Insulator – 650V Overhead Power Lines
The TYPE 210 Shackle Type Insulator Porcelain is a robust and dependable solution for securing and insulating conductors in low voltage overhead distribution lines up to 650 Volts.
Manufactured by BONLE (MINQING) LOW VOLTAGE ELECTRIC CO.,LTD. and designed by WU REN GUO, this insulator ensures seamless integration into low voltage power networks.
The TYPE 210 features a durable glazed porcelain finish, providing excellent weather resistance and long-term durability in outdoor environments. Designed as a shackle (spool) type insulator, it is specifically engineered for anchoring and dead-ending low voltage conductors on cross arms, poles, and building facades. With its robust mechanical design and reliable electrical performance, this insulator offers a cost-effective solution for low voltage overhead line applications.
TYPE 210 Shackle Type Insulator – Designation Breakdown
The designation “TYPE 210” is a specific manufacturer product code. The breakdown below reflects its primary application and design features:
| Code | Meaning |
| 210 | Model series / Low voltage class insulator |
| Shackle | Shackle (Spool) type design for strain and dead-end applications |
TYPE 210 Shackle Type Insulator – Technical Specifications
| Parameter | Value |
| Model | TYPE 210 |
| Applicable Standard | Designed to meet AS 3608-2005 |
| Nominal Voltage | 650 Volts |
| Frequency | Not greater than 100 Hz |
| Designed Loading | 7 kN |
| Insulator Material | Porcelain |
| Surface Finish | Glazed (Standard Grey/Brown) |
| Thread Type | Shackle (Spool) Type |
| Top Diameter | Ø67 ± 3 mm |
| Neck Diameter | Ø39 ± 1 mm |
| Hole Diameter | Ø17.5 +1/0 mm |
| Height | 51 ± 2 mm |
| Base Diameter | Ø38 mm |
| Radius | R5 |
| Manufacturer | BONLE (MINQING) LOW VOLTAGE ELECTRIC CO.,LTD. |
| Designer | WU REN GUO |
TYPE 210 Shackle Type Insulator – Key Features
Reliable Electrical Performance – The TYPE 210 insulator delivers reliable electrical performance for 650V systems. With a dry flashover voltage of 15kV and a wet flashover voltage of 8kV, it effectively ensures safe operation under various environmental conditions. Testing and verification follow AS/NZS 2947.1 – Test methods for insulator units where applicable.
High Mechanical Strength – With a designed loading of 7 kN, the insulator reliably withstands conductor tension, wind loads, and ice accretion, ensuring long-term stability in strain and dead-end overhead line installations. For installation best practices, refer to our Insulator installation guide for overhead lines.
Low Voltage Application – Designed for outdoor use at nominal voltages up to 650V a.c. and frequencies not greater than 100Hz, making it ideal for low voltage distribution networks.
Shackle / Spool Type Design – Specifically engineered for anchoring and securing LV conductors to cross arms, poles, and building structures. The spool configuration allows for easy and secure conductor tying.
Glazed Porcelain Finish – The insulator features a durable glaze coating (available in standard colors) that provides excellent weather resistance, UV protection, and self-cleaning properties, ensuring long-term performance in harsh outdoor environments.
Reliable Design – Engineered for long-term reliable operation with minimal maintenance requirements – regular visual inspections and cleaning are typically sufficient to ensure continued performance.
TYPE 210 Shackle Type Insulator – Application Scenarios
The TYPE 210 Shackle Type Insulator is ideal for:
- Anchoring and dead-ending of conductors in low voltage overhead distribution lines up to 650V a.c.
- Securing LV cables to cross arms, poles, and building structures
- Outdoor installations with exposure to all atmospheric factors
- AC overhead power lines with frequencies not exceeding 100 Hz
- Power distribution networks in normal environmental conditions
- Installation on wooden, reinforced concrete, and metal poles
For projects involving different voltage classes or mechanical load requirements, explore our related product ranges such as 1130W/32 11kV Pin-Type Insulator, TYPE 510 Porcelain Pin Insulator, 11kV strain insulators for overhead lines, and Porcelain shackle insulators – 650V & 3300V.
TYPE 210 Shackle Type Insulator – Standards Compliance
| Standard | Description |
| AS 3608-2005 | Insulators — Porcelain and glass, pin and shackle type — Voltages not exceeding 1000V a.c. |
| AS/NZS 2947.1 | Test methods — Insulator units |
| AS 1154.1 | Insulator and conductor fittings for overhead power lines – Performance, material, general requirements and dimensions |
| AS 2947.3 | Insulators for overhead power lines — Porcelain and glass — Part 3: Insulator threads |
For a comprehensive overview of how these standards apply to your specific project, visit our AS/NZS standards compliance overview.
TYPE 210 Shackle Type Insulator – Recommended Installation
The TYPE 210 shackle insulator is designed for direct mounting onto cross arms, pole brackets, or building facades using appropriate bolts or pins through the central hole (Ø17.5 mm diameter). The spool design features integral grooves for secure conductor tying, ensuring reliable strain relief in dead-end and angle applications.
Why Choose TYPE 210 Shackle Type Insulator for Your Power Grid?
- Full compliance – designed to meet relevant AS/NZS standards, ensuring smooth acceptance by grid operators and regulatory bodies.
- Proven reliability – engineered with 7 kN designed loading for dependable strain and dead-end applications.
- Low voltage optimized – specifically designed for voltages up to 650V a.c.
- Weather-resistant – durable glazed porcelain finish provides excellent weather resistance and UV protection.
- Shackle type design – specifically engineered for anchoring LV conductors to cross arms, poles, and buildings.
- Cost-effective – high performance at competitive pricing, reducing total project costs.
About the TYPE 210 Shackle Type Insulator Manufacturer
The TYPE 210 Shackle Type Insulator Porcelain is manufactured by BONLE (MINQING) LOW VOLTAGE ELECTRIC CO.,LTD., a leading Chinese insulator manufacturer with decades of experience in power line products. This manufacturer holds ISO 9001 certification and produces insulators in accordance with IEC, ANSI, ASTM, AS, BS, DIN, and ISO standards. All products undergo rigorous electrical and mechanical testing before shipment, ensuring the highest quality standards. View the full BONLE official pin insulator product range for related product specifications and technical documentation.
Designer: WU REN GUO
Model: TYPE 210 | Standard: AS 3608-2005 Compliant | Rated Voltage: 650 V | Designed Loading: 7 kN
